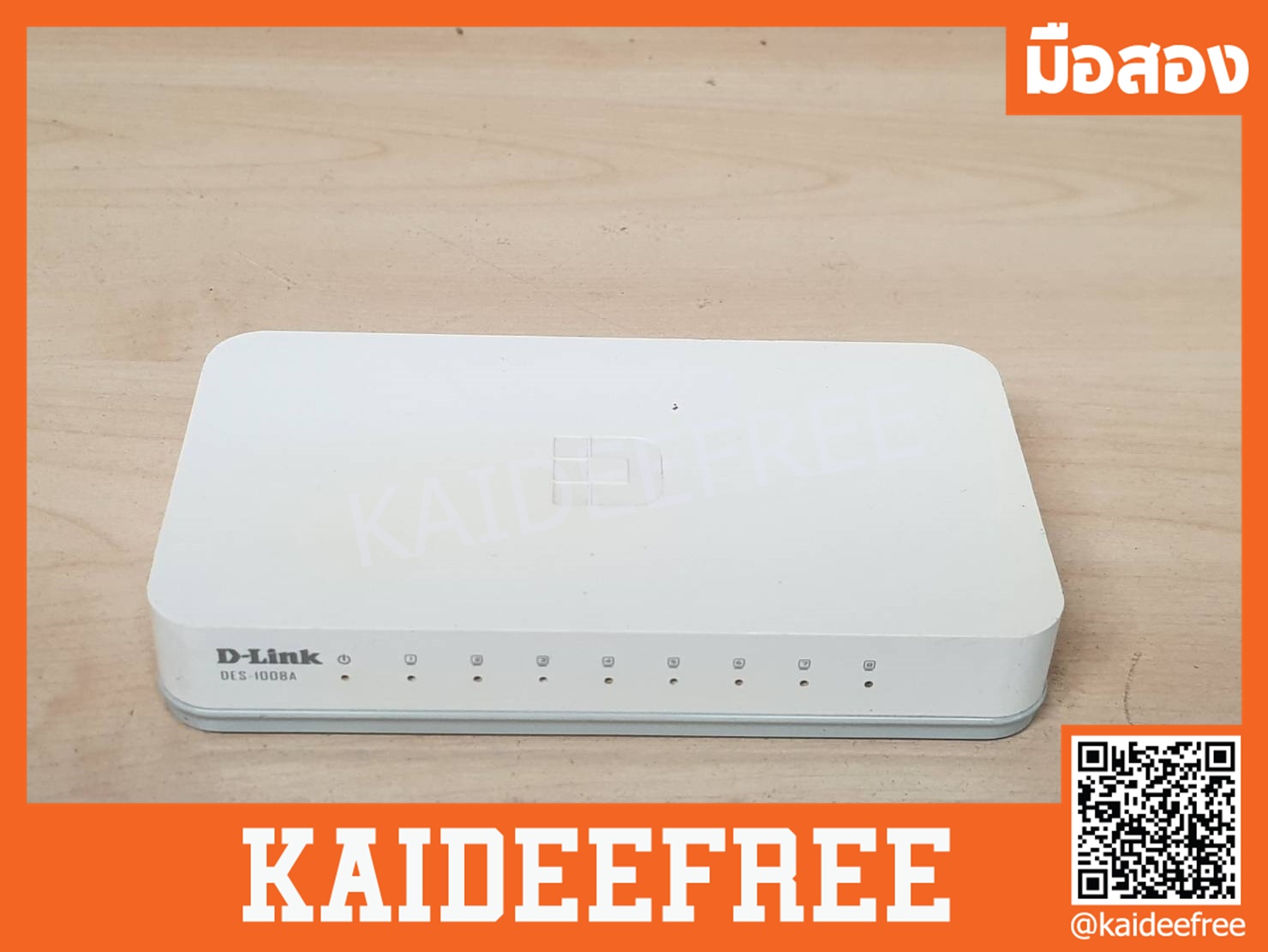

Switching Hub D-LINK (DES-1008A) 8 Port มือสอง

DES-1008A

10BASE-T
- UTP CAT 3/4/5/5e (100m max.)
- EIA/TIA-586 100-ohm STP (100m max.)
100BASE-TX
- UTP CAT 5/5e (100m max.)
- EIA/TIA-568 100-ohm STP (100m max.)

CSMA/CD

Store-and-forward

2K

- Ethernet : 14,880 pps Per Port
- Fast Ethernet : 148,800 pps Per Port

57KBytes Per Device

1.6 Gbps switching fabric

-Per Port : Link/Activity
-Per Device : Power

- Green Ethernet
- 1.6 Gbps switching fabric
- Auto MDI/MDIX crossover for all ports
- Secure store-and-forward switching scheme
- Compliance with IEEE802.3az EEE power saving
- Full/half-duplex for Ethernet/Fast Ethernet speeds
- IEEE 802.3x Flow Control
- Plug-and-play installation
- RoHS compliant
- Supports 2048-byte Jumbo Frames

5 V/0.55 A Power Adapter

Power On (Standby): DC input: 0.36 watts, AC input: 0.6 watts
Maximum: DC input: 1.78 watts, AC input: 2.19 watts
Link Up: EEE mode: DC input: 0.75 watts AC input: 1.1. watts

Temperature
Operating: 0 to 40 °C (32 to 104 °F)
Storage: -10 to 70 °C (14 to 158 °F)
Humidity Operating: 10% to 90% non-condensing
Storage: 5% to 90% non-condensing

- FCC Class B
- ICES-003 Class B
- CE Class B
- C-Tick Class B
- cUL
- LVD

MTBF : 2,137,319 hours
Media Interface Exchange : Auto MDI/MDIX adjustment for all ports
RAM Buffer : 96 KB per device

8 x 10/100Mbps Fast Ethernet Ports

Heat Dissipation
- Power On (Standby): AC input:2.0472 Btu/h
- Maximum: AC input:7.47228 Btu/h

MAC Address Learning : Automatic Update

Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Ethernet: 14,880 pps per port
