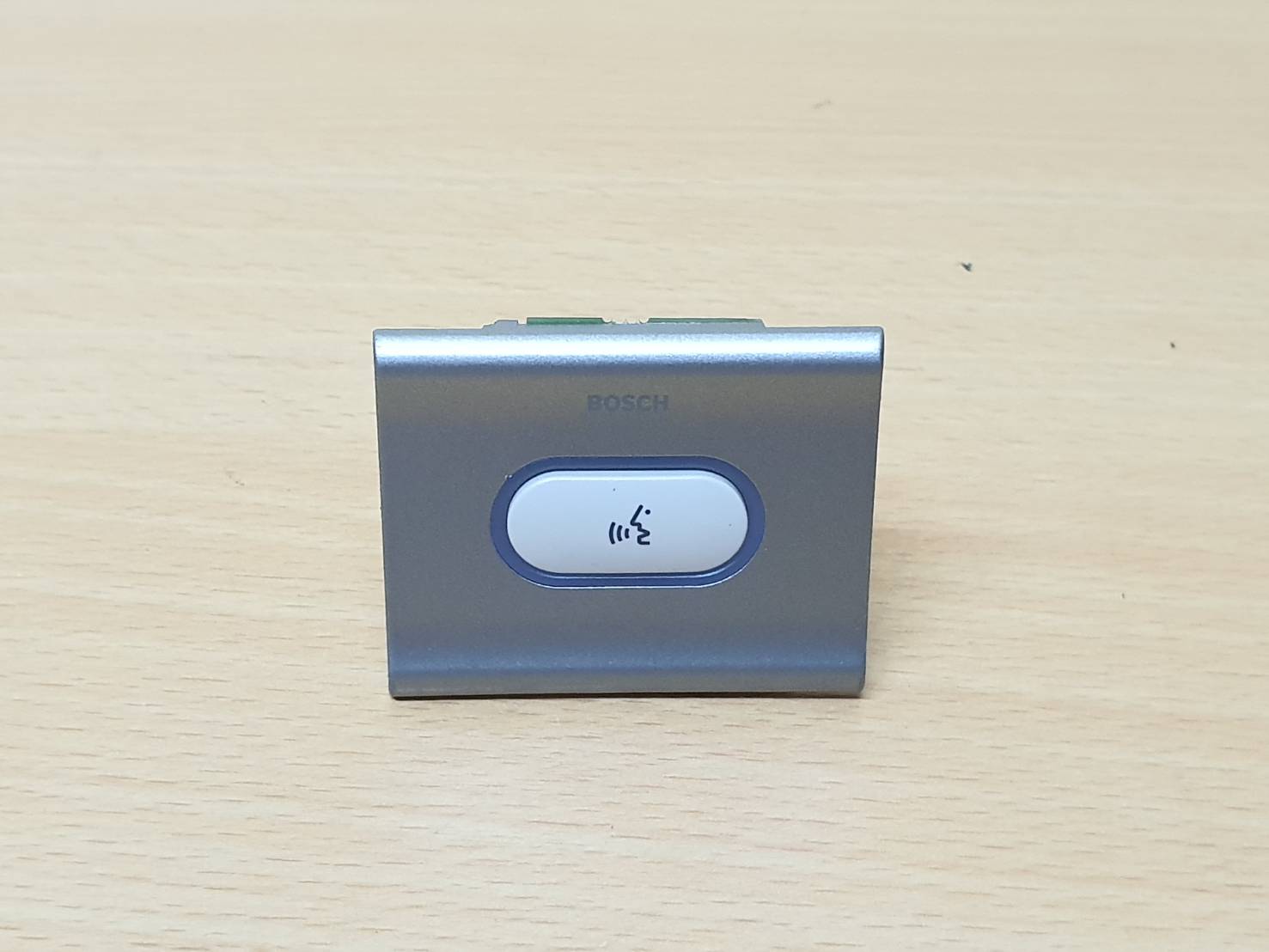

BOSCH DCN‑FMICB Flush Microphone Control Panel มือสอง

Functions

Controls and Indicators

• One microphone control button
• Three-color illuminated ring around the microphone button which can show the following states:

– Red - microphone is active
– Flashing red* - last minute of speech time is active
– Green - the delegate is listed in the request list
– Flashing green - the delegate is the first in the request list and the next one to get the floor
– Yellow* - the delegate is part of the Notebook and can control its microphone without interaction of the operator

* Only available with PC Control Software.

Interconnections

• 2 RJ11 connectors: one for connection to Dual Delegate Interface (DCN-DDI), and one for loop through

Technical specifications

Mechanical

Mounting Click‑to‑fit in a metal panel with a

thickness of 2 mm, or in combination

with DCN‑FCOUP couplings and

DCN‑FEC end caps in any surrounding

Dimensions (H x W x D) 40 x 50 x 50 mm

(1.57 x 1.97 x 1.97 in)

Weight 200 g (0.44 lb)

Color

DCN‑FMICB Silver (RAL 9022)

DCN‑FMICB‑D Dark (graphite gray)

Ordering information

DCN‑FMICB Flush Microphone Control Panel

flush mounted, silver

Order number DCN-FMICB
