MIPRO ACT-51/ACT-5H ไมโครโพนมือถือเดี่ยว ปรับความถี่ได้ 8 ช่องความถี่

MIPRO ACT-51/ACT-5H ไมโครโพนมือถือเดี่ยว ปรับความถี่ได้ 8 ช่องความถี่

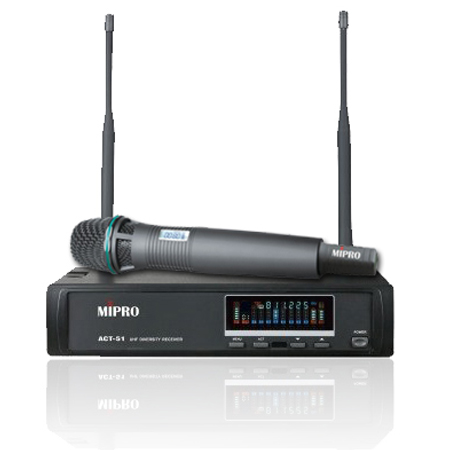

ประกอบไปด้วย ACT-51 UHF Single Channel Diversity Receiver 1 เครื่อง และ ACT-5H Standard Handheld Transmitter 1 ตัว

ACT-51 UHF Single Channel Diversity Receiver

FEATURES

• Single & Dual Channels 1/2-rack design.
• Up to 8 preset compatible systems per band.
• Industry’s only color VFD (Vacuum Florescent Display) delivers a very bright light with exceptionally clear contrast for clear viewing in day/night environments.
• Industry’s only interference indicator.
• Features MIPRO’s patented and now, industry standard “AutoScan” and ACT (Automatic Channel Targeting) channel setup technology.
• Diversity technology for optimum reception.
• Dual-squelch "PiloTone & NoiseLock" circuits minimize interference.
• Proprietary high performance RF filter and circuitry improve anti-interference characteristics and increased compatible systems.
• Displays all pertinent parameters on the same screen for easy control and monitoring.
• Transmitter battery status meter.
• RF & audio meters.
• XLR & 1/4” audio outputs.
• Rugged metal construction.
• 100m(330ft.) operating range.(line-of-sight)
• 100% design and made in Taiwan ensures high product quality and value.

SPECIFICATIONS

• Oscillation Mode: PLL synthesized
• Stability: ±0.005% (-10~50℃)
• Carrier Frequency Range: UHF 620~934MHz
• Sensitivity: S/N>80dB@10dBuV input
• Max. Deviation Range: ±68KHz
• S/N Ratio: >105dB(A)
• T.H.D.: <0.5% @ 1KHz
• Frequency Response: 80Hz~18KHz
• Maximum Output Level: Three options: +10dBV / 0dBV / -6dBV
• Output Connectors: XLR balanced & 6.3φ phone jack unbalanced. Multi-channel system can switch between separate or mixed output.
• Audio Output Adjustment: The world’s first wireless system with output level accurately pre-adjusted to equal to the microphone capsule sensitivity and ensure optimal performance.
• Squelch Countrol: Innovative "PiloTone & NoiseLock" dual-squelch circuit.
• Power Supply: External AC power supply, 12~15VDC.
• Dimensions: 210(W)×44(H)×206(D)mm / 8.3(W)x1.7(H)x8.1(D)"
• Weight: 0.7kg / 1.7lbs
• Matching Transmitters: ACT-5H, ACT-7H, ACT-5T, ACT-7T
• Note: Varied specifications on carrier frequency range and maximum deviation to comply regulation of different countries.

ACT-5H Standard Handheld Transmitter

FEATURES

• Rugged construction.
• The cardioid condenser microphone capsule provides high fidelity, wide frequency response, high dynamic range, rapid transient response, low echo feedback, clarity and accuracy sound image.
• Optional, easy to change dynamic and condenser capsules.
• ACT sync setup.
• 4-segment battery status meter.
• LCD shows group & channel.
• 20 hours battery life per 2 AA batteries.
• 100 m (330 ft.) operating range.

SPECIFICATIONS

• Housing Material: Plastic
• Oscillation Mode: PLL Synthesized
• Carrier Frequency Range : UHF 620~950MHz
• Bandwidth: 24MHz
• RF Output Power: 10~30mW (or dependent on applicable country regulations)
• Spurious Emissions: <-55dBc
• Max. Deviation Range: ±68KHz
• Maximum Input Level: 148dB SPL
• Microphone Capsules: MU-78, MU-39
• Battery: AA×2 (alkaline)
• Display Status: LCD displays battery fuel gauge, channels, and error message.
• Dimensions: 50(Φ)×260(L)mm / 2.0(Φ)x10.2(L)"
• Weight: 220g / 7.0oz
• Note: Varied specifications on carrier frequency range, maximum deviation, RF output power and spurious emission to comply regulation of different countries.
